Specifications

Power Watt: 750W
Efficiency Rating: 80 Plus Gold (up to 90%)
Modular: Full modular
Fan Size: 120 mm
Fan Bearing: Fluid Dynamic Bearing
Dimensions (DxWxH): 140 × 150 × 86 mm
PFC Type: Active PFC
Input Voltage Range: 100–240 VAC
Input Frequency Range: 47–63 Hz
Power Excursion: 1500W (up to 200% of rated power for 100 µs)
ATX (24‑pin): 1 connector
EPS (4+4‑pin): 2 connectors
PCI‑E 5.0 (16‑pin): 1 connector (450 W)
PCI‑E (6+2‑pin): 3 connectors
SATA (15‑pin): 8 connectors
Peripheral (4‑pin): 4 connectors
FDD (4‑pin): 1 connector
Protection: OCP / OVP / OPP / OTP / SCP / UVP
ATX 3.1 Ready: Yes
PCIe 5.1 Ready: Yes
Dual‑color 16‑pin cable: Yellow connector for easy identification
Supports NVIDIA GeForce RTX 40/50 Series: Yes
Maximum PCIe 5.1 GPU Power: 450W
Compact Size: Smaller than typical PSUs, saves case space
Flat Cables: Included for easier cable management
DC‑to‑DC & Full Bridge Topology: Used for higher conversion efficiency
Single Rail: Yes
Total Power Excursion Capacity: 2× total power excursion
GPU Power Excursion Capacity: 3× GPU power excursion

Photos

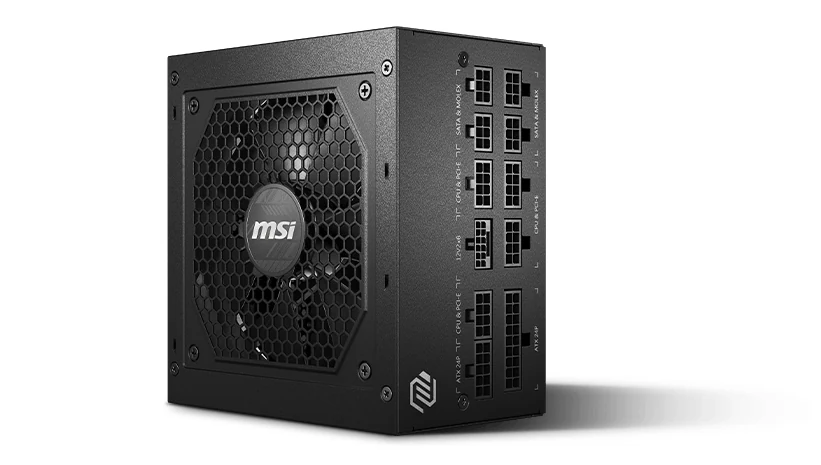

The MSI MAG A750GL PCIE5 power supply is shown in a three-quarter angle, highlighting its front and side ports against a black background.

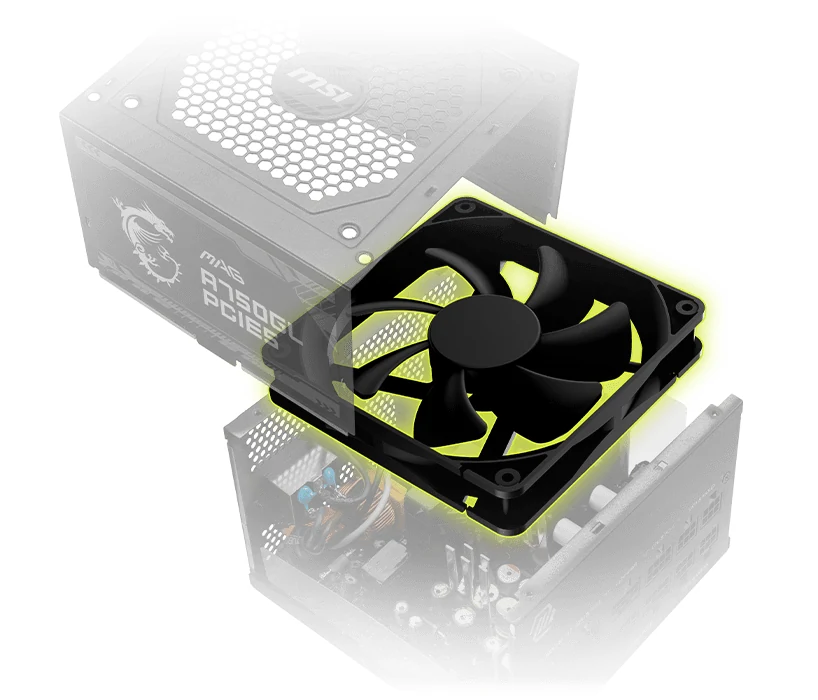

The MSI MAG A750GL PCIE5 power supply is shown in a three-quarter angle, highlighting its front and side panels with visible cooling fan and ports.

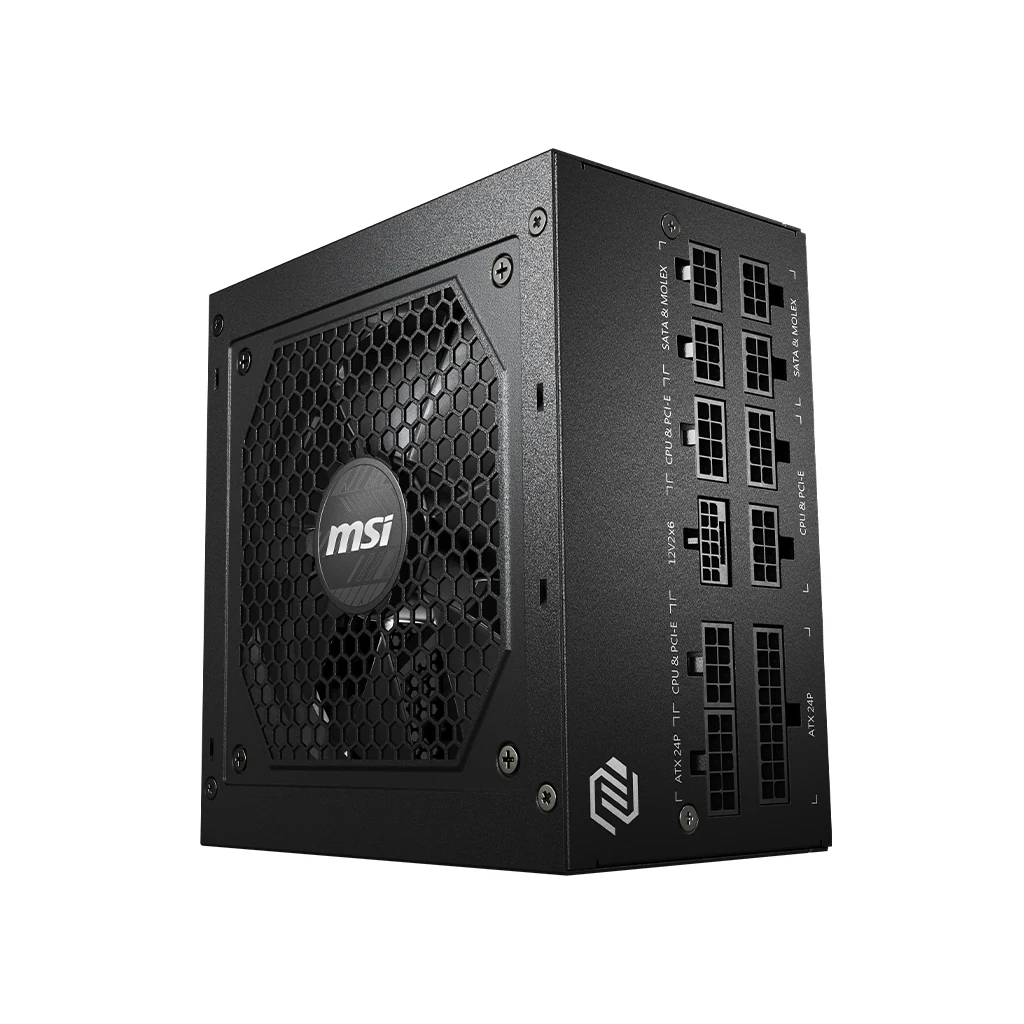

The MSI MAG A750GL PCIE5 power supply is shown in a three-quarter angle, highlighting its ports and the honeycomb design on the front.

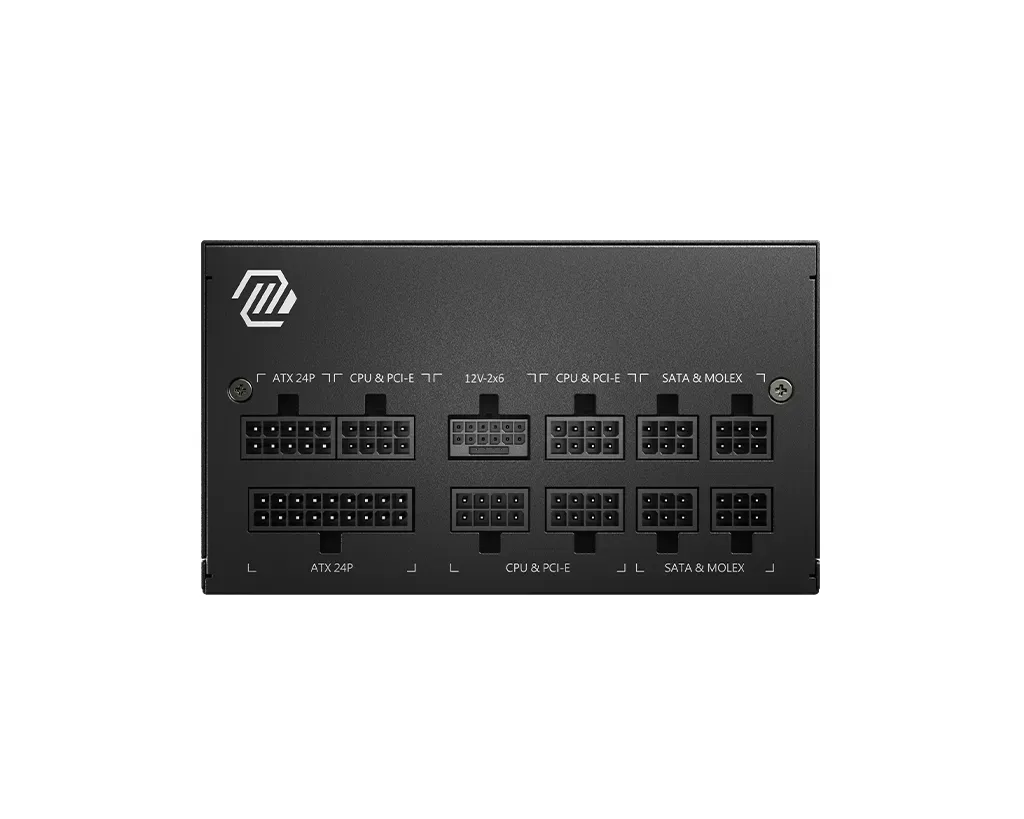

The back panel of a black power supply unit with multiple connector ports labeled for ATX, CPU & PCI-E, and SATA & MOLEX.

What reviewers say

The review describes the MSI MPG Ai1600TS PCIe5 as a high‑end 1600‑W PSU that delivers excellent efficiency (up to 94% at 230 V), very low ripple, and tight voltage regulation across all rails. It highlights MSI’s safety features – two native 12V‑2x6 connectors with GPU Safeguard+ monitoring, Fan Safeguard, and a long 1390 mm power cable – as well as the 12‑year warranty. The unit remains quiet up to about 1000 W; noise rises noticeably above ~1400 W. Overall, the article praises its performance, build quality, and safety features while noting that it can become audible under very high continuous loads.
www.igorslab.de ↗
The PCMENA review praises the MSI MAG A750GL PCIE5 750W Modular Power Supply for its solid power delivery, quiet operation under load, efficient 80 Plus Gold certification, modular cable management, and long warranty. The reviewer notes it is slightly pricier than some competitors but considers the performance and build quality worth the extra cost.
pcmena.com ↗
The LTT Labs review of the MSI MAG A750GL PCIE5 notes that, while the unit generally delivers solid and average performance with good efficiency (meeting 80PLUS Gold and even Platinum levels at some loads) and a generous 10‑year warranty, it suffered an initial sample failure during OCP testing. The reviewer also points out low voltage excursions on the 12V rail under load, minimal accessories, lack of hybrid fan mode, and limited resilience to power dropouts.
www.lttlabs.com ↗

Our take

Based on 3 reviews

All three reviews confirm the MSI MAG A750GL PCIE5 delivers solid power delivery and meets 80 Plus Gold efficiency standards. What Hi-Fi? and PCMENA highlight its quiet operation under load and modular cable management as key strengths. Based on these consistent findings, we conclude the unit offers reliable performance for standard builds.

However, Igor's Lab tested a different 1600W model, not this 750W unit, so its noise observations do not apply here. LTT Labs notes a sample failure during OCP testing and limited resilience to power dropouts, raising reliability concerns. Buyers should weigh the strong efficiency and quiet operation against these potential stability issues.
