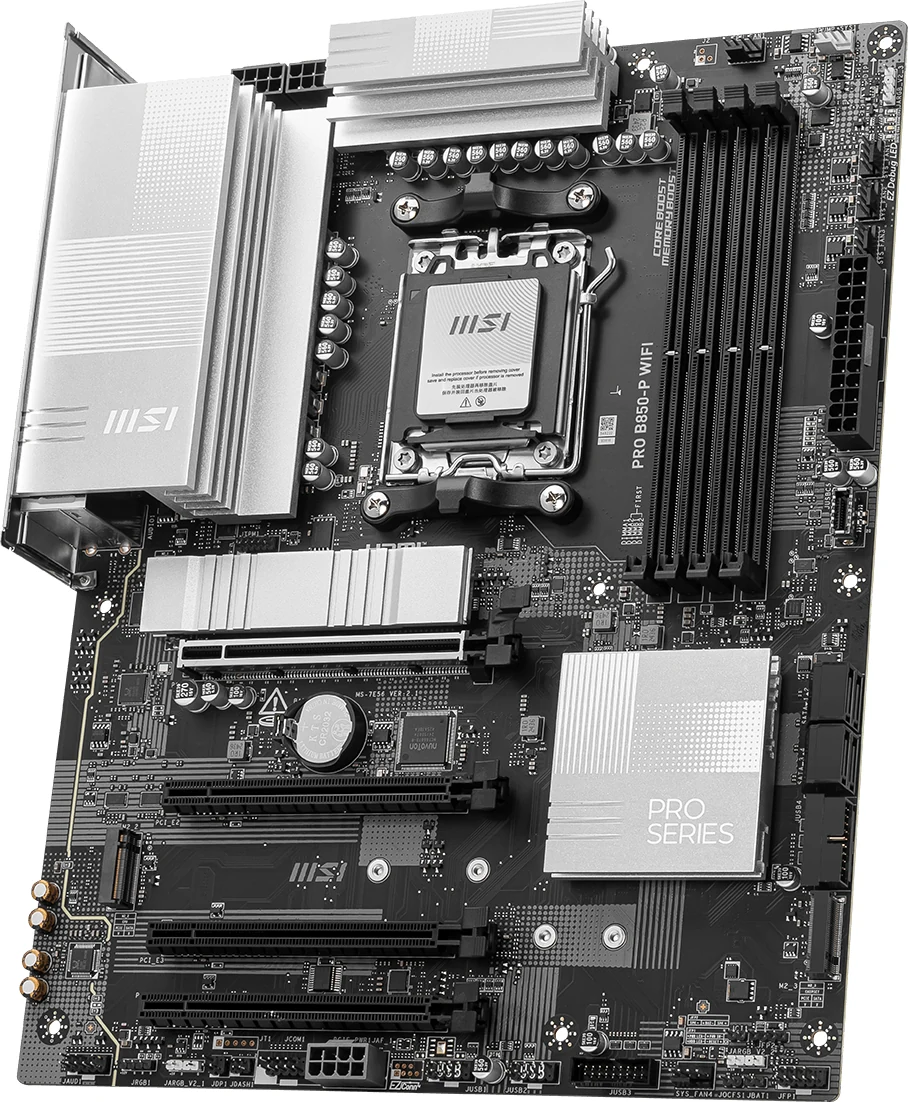

MSI PRO B850-P WiFi: Gen5 M.2 and 8200 MT/s DDR5 impress

Specifications

Chipset

AMD B850

CPU Socket

AM5 – supports Ryzen 9000/8000/7000 series desktop processors

Memory Slots

4× DDR5 UDIMM

Maximum Memory Capacity

256 GB

Memory Speed (OC)

DDR5 8200–5600 MT/s

Memory Speed (JEDEC)

DDR5 5600–4800 MT/s

Onboard Graphics

HDMI 2.1, max 4K 60 Hz (integrated GPU only)

Audio Chip

Realtek ALC897 7.1‑Channel HD Audio

PCIe Slots

4× PCI‑E x16 – E1 Gen5, E2 Gen3, E3 Gen4, E4 Gen3

M.2 Slots

3× M.2 (M1 Gen5 x4, M2 Gen4 x4, M3 Gen4 x2) with 2280/2260/22110 support

SATA Ports

4× SATA 6 Gb/s

RAID Support

RAID 0 / RAID 1 for SATA and NVMe devices

USB Rear – 2.0

4× USB 2.0

USB Rear – 5 Gbps Type‑A

1× USB 5 Gb/s Type‑A

USB Rear – 10 Gbps Type‑A

1× USB 10 Gb/s Type‑A

USB Rear – 10 Gbps Type‑C

2× USB 10 Gb/s Type‑C

USB Rear – 5 Gbps Type‑C

1× USB 5 Gb/s Type‑C

USB Front – 2.0

4× USB 2.0

USB Front – 5 Gbps Type‑A

4× USB 5 Gb/s Type‑A

USB Front – 5 Gbps Type‑C

1× USB 5 Gb/s Type‑C

LAN

Realtek 8126VB 5 G LAN

Wireless

Wi‑Fi 7 (802.11be), up to 5.8 Gbps, Bluetooth 5.4 MLO

Power Connectors

ATX 24‑pin, 2× CPU 8‑pin, 1× PCIe 8‑pin

Fan Headers

1× CPU fan, 1× Combo (pump/sys), 4× System fans

Front Panel Connectors

2× JFP, 1× JCI, 1× JAUD, 1× JCOM, 1× JDASH

RGB Headers

3× Addressable V2 RGB LED, 1× RGB LED

TPM Header

1× TPM 2.0

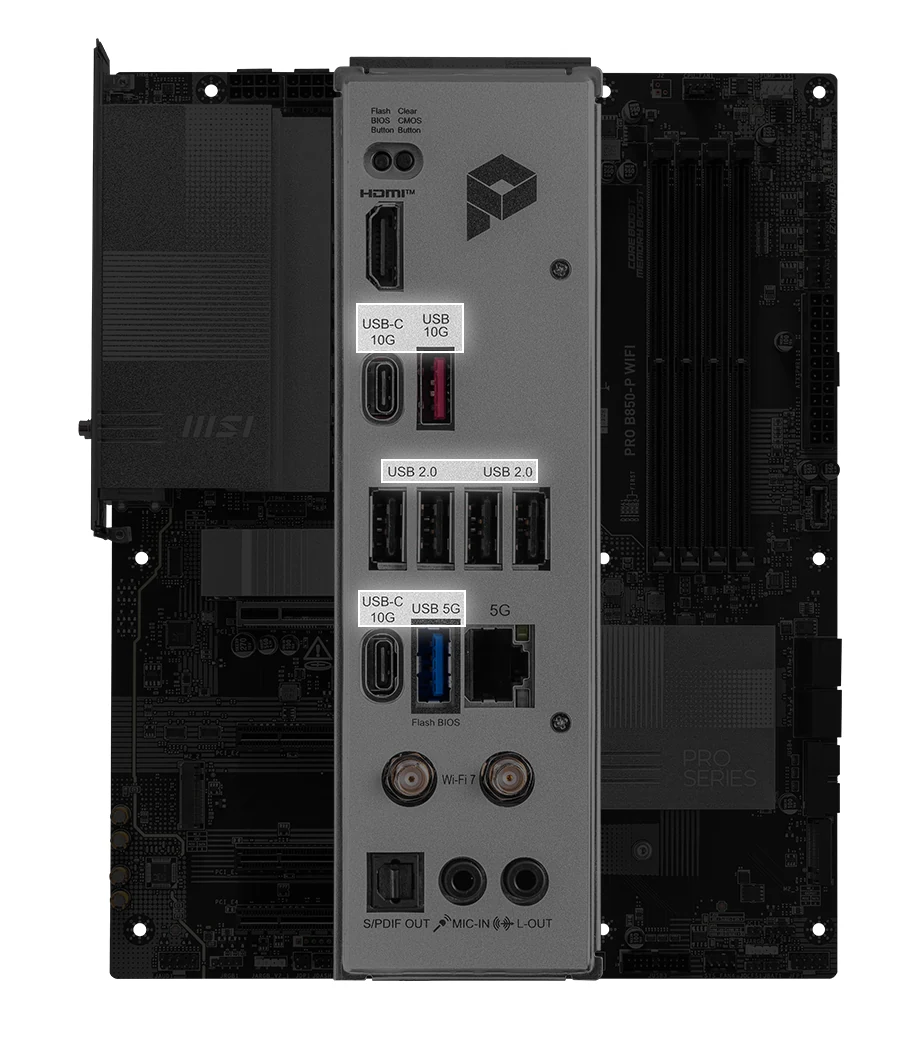

Back Panel Ports – Clear CMOS Button

1×

Back Panel Ports – USB 10 Gbps Type‑A

1×

Back Panel Ports – USB 2.0

4×

Back Panel Ports – 5G LAN

1×

Back Panel Ports – Wi‑Fi/Bluetooth

1×

Back Panel Ports – Audio Connectors

1×

Back Panel Ports – Flash BIOS Button

1×

Back Panel Ports – HDMI

1×

Back Panel Ports – USB 10 Gbps Type‑C

2×

Included Accessories – EZ PCIe Clip II

Yes

PCIe Steel Armor Slots

Yes

Lightning Gen 5 PCIe Bandwidth

Up to 128 GB/s on x16

Supplemental PCIe Power Connector

Available
