Specifications

Socket: AM5
Chipset: X870E
CPU Support: AMD Ryzen™ 9000, 8000 & 7000 Series
Form Factor: ATX
Memory Slots: 4 DIMM
Max Memory Capacity: 256 GB
Memory Type: DDR5
Memory Speed (OC): 8400+ MT/s
PCIe 5.0 x16 Slot: 1 SafeSlot (CPU)
PCIe 4.0 x16 Slots: 2 (Chipset)
M.2 Slots: 5 (1×22110 PCIe 5.0×4, 2×2280 PCIe 5.0×4, 2×2280 PCIe 4.0×4)
SATA Ports: 4 × SATA 6Gb/s
USB 4.0 Type‑C: 2 (40 Gbps)
USB 3.2 Gen 2x2 Type‑C: 1 (20 Gbps, up to 30 W PD)
USB 3.2 Gen 2 Ports: 9 × Type‑A + 1 × Type‑C
USB 5Gbps Headers: 2 (supports 4× USB 5Gbps ports)
HDMI Port: 1
Ethernet: Realtek 5 Gbps
WiFi: Wi‑Fi 7 (6 GHz, 320 MHz channels, 4096 QAM)
Audio Codec: ALC4080
Front Audio Amplifier: Savitech SV3H712
RGB Headers: 3 × Gen 2 ARGB
Power Phases: 18 (Vcore) + 2 (SoC) + 2 (Misc)
VRM Heat‑Sink: Dual‑layer with heatpipe
M.2 Heatsinks: Combo‑sink, 3 × individual heatsinks
Clear CMOS Button: Yes
BIOS FlashBack Button: Yes
Power Delivery on USB 20Gbps Port: 30 W PD
Audio SNR (Playback): 110 dB
Audio SNR (Recording): 120 dB
Audio Impedance Sense: Yes
On‑board Audio Shielding: Yes
USB Wattage Watcher: Yes
AI Overclocking: Enabled via BIOS
AI Cooling II: One‑click fan tuning
AI Networking II: Optimizes WiFi 7 performance
AI Cache Boost: Up to 29% LLM speed uplift (with DDR5)
Power Delivery Design: 18+2+2 stages rated up to 110 A per stage
Cooling Features: VRM heatsink, M.2 combo‑sink, AIO pump header, 5×4‑pin PWM fan headers

Photos

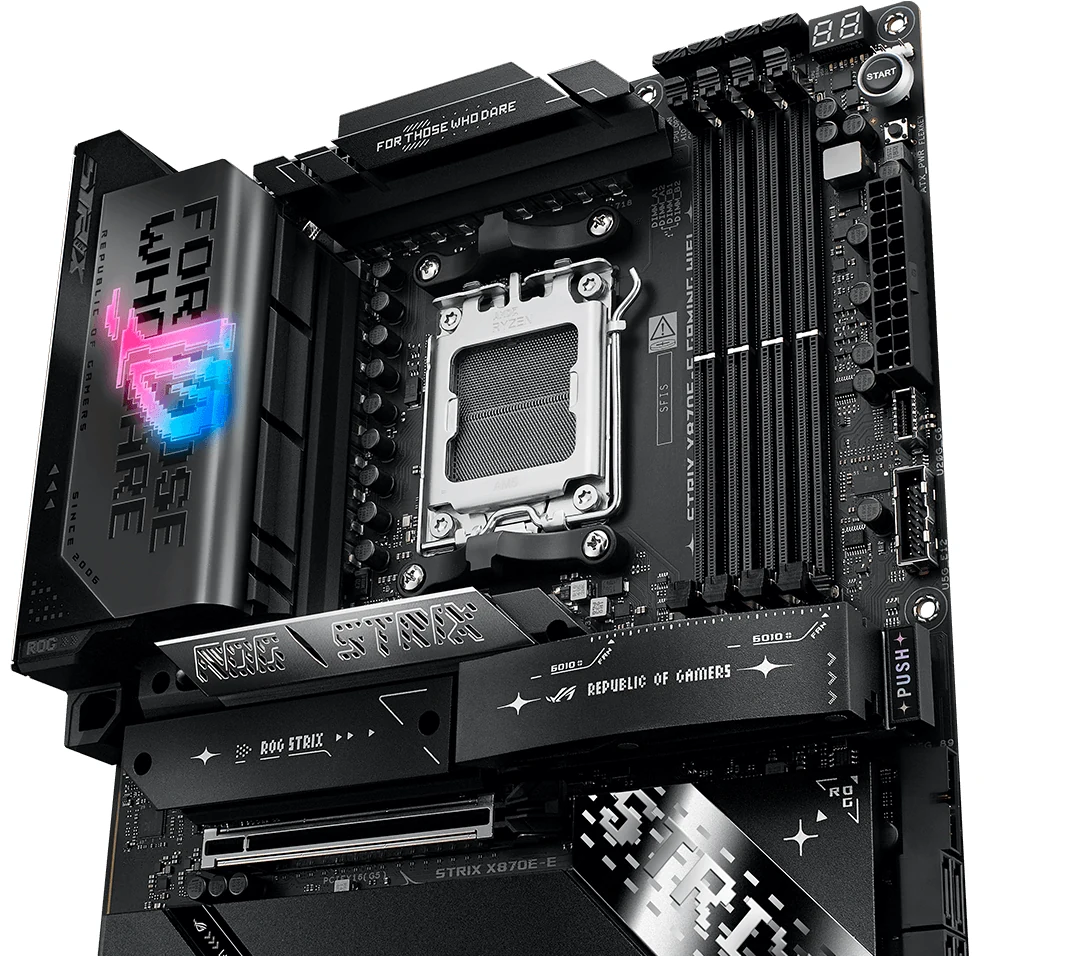

A close-up of an ASUS ROG Strix X870E-E Gaming motherboard, showcasing its front and side panels with visible ports and branding.

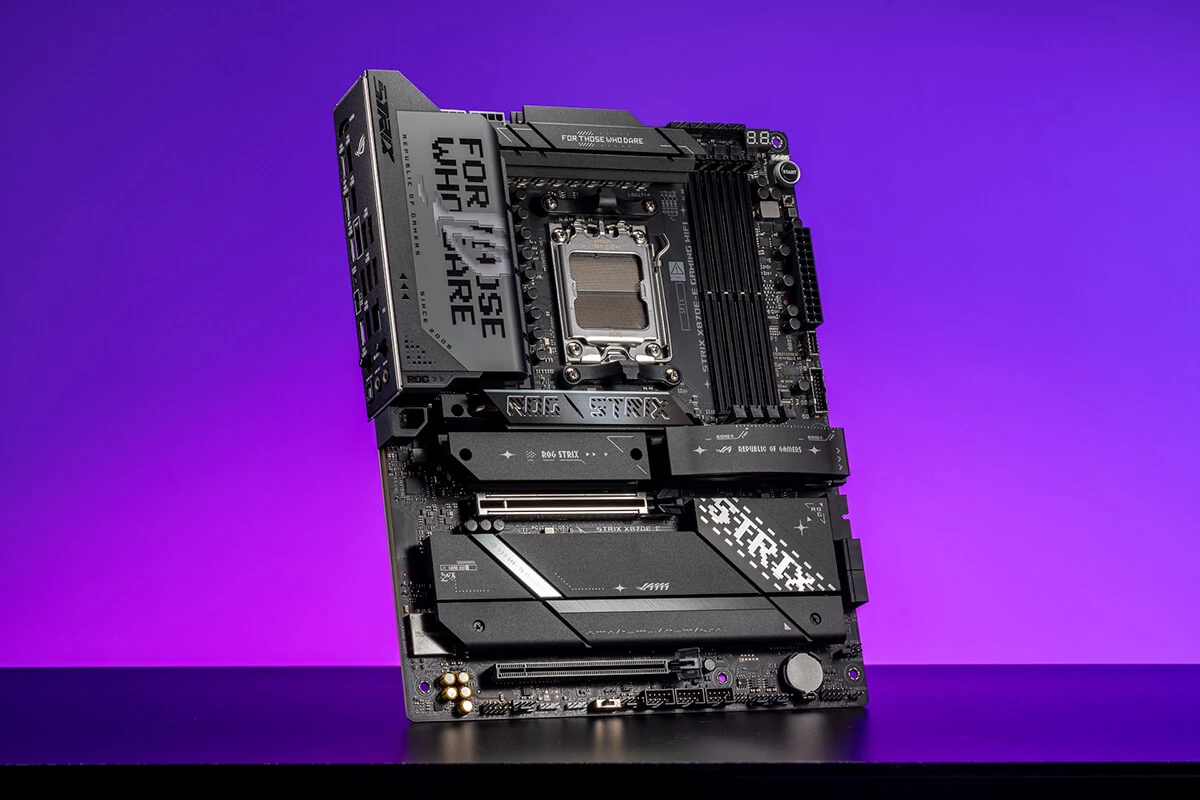

A black motherboard with a purple background, viewed from the front.

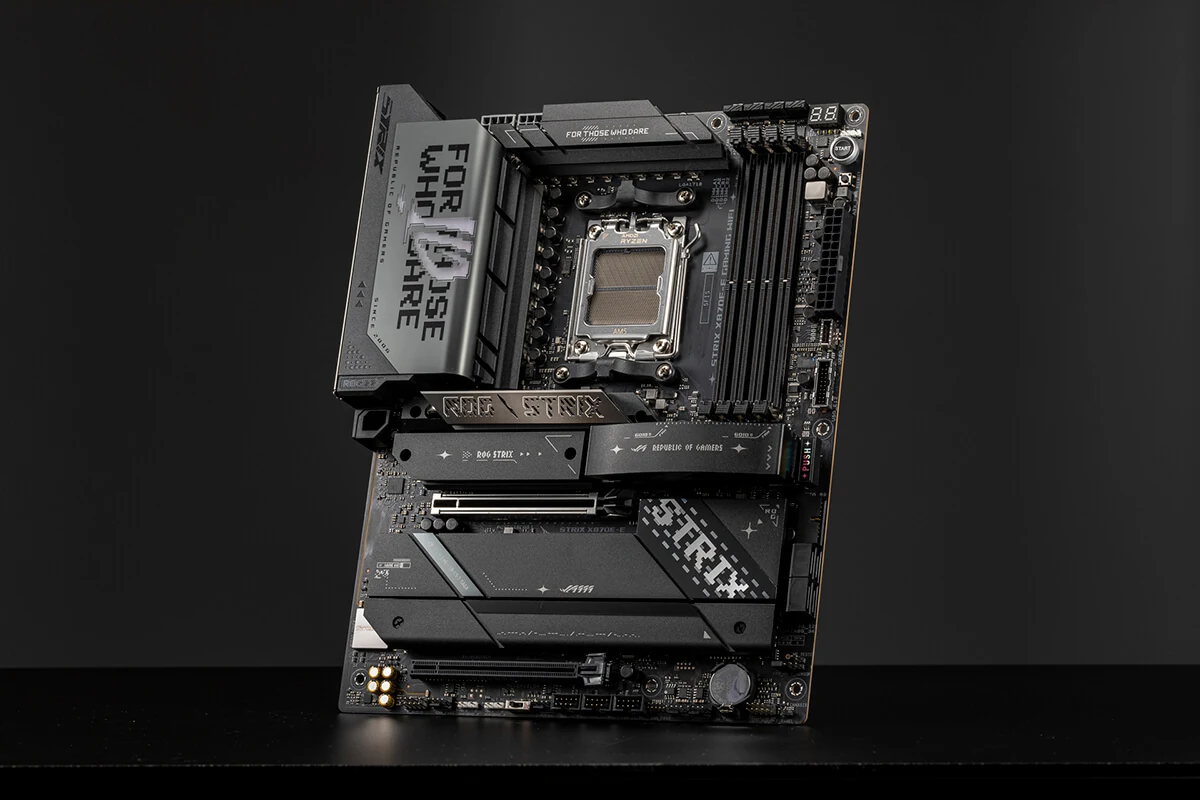

A black motherboard with 'ROG STRIX' branding prominently displayed on the front and top, positioned at a three-quarter angle against a dark background.

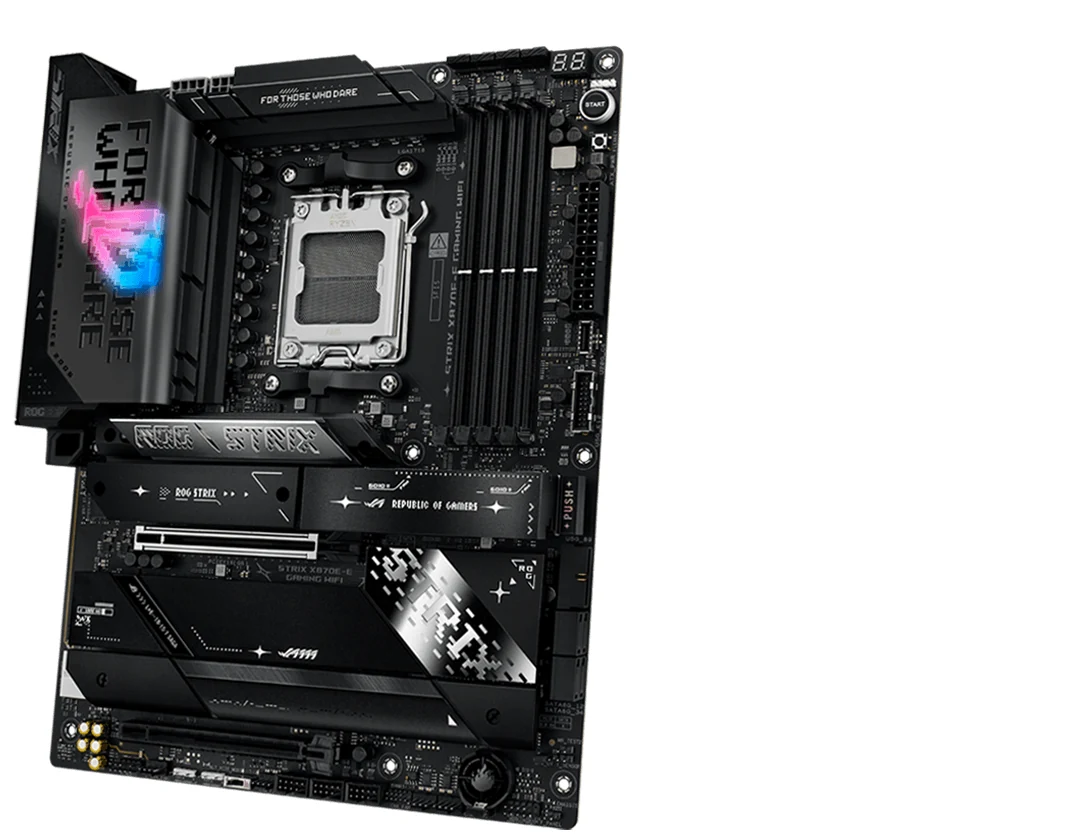

A black motherboard with various ports, slots, and components visible from a top-down angle.

What reviewers say

Tom’s Hardware rates the ASUS ROG Strix X870E‑E Gaming Wifi as a well‑rounded, feature‑rich motherboard that delivers solid performance and plenty of connectivity for under $500. The review highlights its generous USB ports, three PCIe 5.0 M.2 slots, AI‑driven utilities, and robust build quality while noting the price point itself as a drawback.
www.tomshardware.com ↗
PC Guide reviews the ASUS ROG Strix X870E‑E Gaming WiFi as a high‑end, feature‑rich motherboard that delivers excellent memory overclocking, PCIe Gen 5 support, and extensive connectivity—including Wi‑Fi 7 and 5Gb Ethernet—making it an attractive choice for gamers who can afford its premium price. The review notes the board’s robust VRM design, sleek aesthetic with RGB lighting, and convenient NVMe/GPU quick‑disconnect feature. However, it also points out that the motherboard is a costly option with some overkill features for most users, and that memory training can be time‑consuming.
www.pcguide.com ↗
The MotherboardCentral review praises the ASUS ROG Strix X870E‑E Gaming WiFi as a flagship ATX board that delivers premium features, robust power delivery with 18+2 VRM phases, extensive heatsink coverage, and high‑end connectivity. The reviewer highlights its strong build quality, aesthetic appeal with brushed metal accents and RGB integration, and the overall confidence in ASUS’s design for enthusiasts.
motherboardcentral.com ↗

Our take

Based on 3 reviews

All three reviews agree the ASUS ROG Strix X870E-E Gaming Wifi delivers premium connectivity, including Wi-Fi 7 and 5Gb Ethernet, alongside robust 18+2 VRM power delivery. Tom’s Hardware and PC Guide highlight three PCIe 5.0 M.2 slots and extensive USB ports, while The MotherboardCentral praises the heatsink coverage, confirming consistent high-end build quality.

However, Tom’s Hardware and PC Guide both cite the high price as a drawback, with PC Guide calling it costly for most users. PC Guide uniquely warns that memory training can be time-consuming, a reservation absent in other reviews. Buyers must weigh premium cost and setup complexity against flagship specs, making it suitable for those needing extensive connectivity but less ideal for budget-conscious users.
